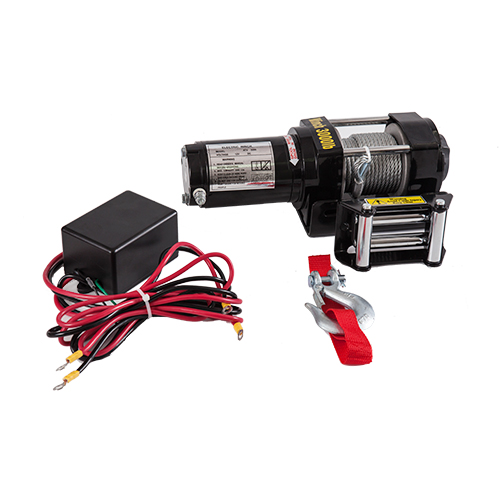

12V VEHICLE MOUNTED MTB WINCH-P3000B

Rated line pull

3000lb (1361kg)single line

Motor

1.36hp/1.0kw, permanent magnet 12V

Control

Remote switch

Gear reduction ratio

153:1

Drum size

Ø1.24"*2.88" (Ø31.5*73mm)

Cable

Ø5.5mm*9.2m

Overall dimension (L*W*H)

12.1”(L)×4.1″(W) ×4.1”(H)

Mounting bolt pattern

3.13″(79.3mm)

Weight

6.5kg

3000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)

Line pull lb(kg)

Line speed ft/min(m/min)

Current(A)

0

10.5(3.2)

10

1000(454)

7.5(2.3)

40

2000(907)

4.2(1.3)

90

3000(1361)

2.3(0.7)

145

3000LBS LINE PULL AND CABLE CAPACITY

Layer of cable

1

2

3

4

5

Rated line

Lbs

3000

2250

1890

1590

1370

pull per layer

Kgs

1361

1022

722

722

622

Cumulative

Ft

4.9

11.5

28.5

28.5

30.1

Cable capacity

M

1.5

3.5

8.7

8.7

9.2
