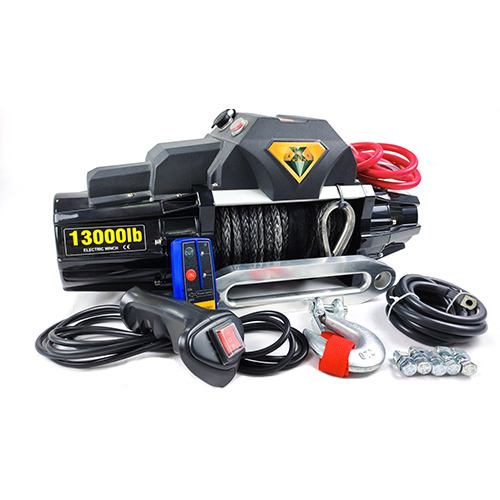

HIGH PULLING FORCE SC13.0WEX WINCH BLACK WITH BLACK SYNTHETIC

Very popular type, similar with WARN winch
12V and 24V both available.
Heavy duty series wound motor, delivers high torque force.
Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
Bilateral roller brake, load-hold in two directions, offers more installation options.
360°rotating clutch makes engagement and disengagement much easier.
Precision machining transmission shaft lower noises when winching.
Sealed winch body, well working in bad weather.
Every winch is tested on pulling capacity and function.
Contact Us

PRODUCT DETAILS

Specification
Rated line pull 13000lb (5897kg) single line
Motor 6.6hp/4.85kw,series wound 12V
Control Remote switch, 12ft (3.7m) lead
Remote Control Included
Gear train 3 stage planetary
Gear reduction ratio 217:1
Clutch Rotating clutch
Braking Automatic load-holding brake
Drum size Ø2.5″*L8.8″ (Ø63.5mm*L224mm)
Rope Ø10mm*28m
Fairlead Aluminum hawse
Wireless Remote control Optional
Battery recommended 650 CCA minimum for winching
Battery leads 2 gauge, 72" (1.83m)
Finishing Black, orange coating
Overall dimension (L*W*H) 546*166*246mm
Mounting bolt pattern 254*114.3mm

13000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
Line pull lb(kg) Line speed ft/min(m/min) Current(A)
0 35.5(10.82) 67
4000(1814) 15.19(4.63) 198
6000(3310) 12(3.66) 261
8000(3629) 9.84(3.0) 320
9500(4082) 6.59(2.01) 350
11000(4970) 8.07(2.46) 370
13000(5897) 7.15(2.18) 405

13000LBS LINE PULL AND CABLE CAPACITY
Layer of cable 1 2 3 4
Rated line Lbs 13000 9210 8030 6894
pull per layer Kgs 5897 4178 3642 3123
Cumulative Ft 20.3 42.6 72 85.5
Cable capacity M 6 13.2 22.1 26

DIMENSIONS(mm)



Weight and Package
Net Weight 26KG
Gross Weight 28KG
Package Honeycomb carton 60x31x29cm




Ningbo Hipower Precision Technologies Co., Ltd., formerly known as Ningbo HaoChuang Precision Machinery Co., Ltd., is leading China High pulling force SC13.0WEX winch black with black synthetic suppliers and OEM/ODM High pulling force SC13.0WEX winch black with black synthetic company specialized in electric winches and high pressure washer accessoires. Our factory covers an area of 20,000 square meters. We’re certified to ISO9001:2008 international quality management system. Also we pass through SGS auditing service each year. We’re a very formal factory.

We have strict quality control of raw materials, components and finished products. All custom High pulling force SC13.0WEX winch black with black synthetic are delivered to customers after tight inspection and test. With experienced engineers, trained workers and professional sales team, we are sure your every specific request will be satisfied.

Our products are exported to all around the world. Our products have been recognized by our customers for good quality and competitive price. We are devoted to provide more "High Power" products to more customers. Welcome to visit our factory at any time.

We have a strong desire that we can double-win with our customer.
