How to Mount a Winch on Your ATV

Mounting a winch on your ATV (All-Terrain Vehicle) can greatly enhance its versatility and capabilities. Whether you're using your ATV for off-road adventures, utility work, or recovery purposes, a winch can be an invaluable tool. Proper installation is essential to ensure the winch works effectively and safely. In this comprehensive guide, we'll walk you through the steps of mounting a winch on your ATV.

Before You Begin:

Before you start the installation process, there are a few important considerations:

1. Choose the Right Winch: Select a winch that is appropriate for your ATV's size and intended use. Consider factors such as weight capacity, cable length, and whether you need a synthetic rope or steel cable.

2. Gather Tools and Supplies: You'll need a set of basic tools including wrenches, sockets, a drill, drill bits, a torque wrench, and zip ties. Ensure you have the appropriate hardware and any brackets or mounting plates that may come with the winch kit.

3. Read the Instructions: Carefully read the manufacturer's instructions that come with the winch. Different ATV models and winch brands may have specific requirements for installation.

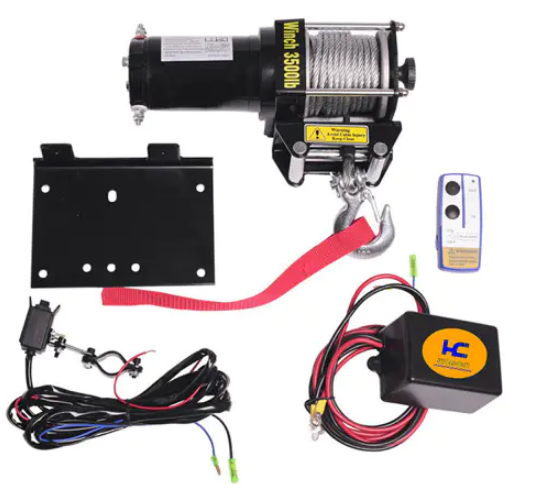

Vehicle mounted ATV winch-P3500

Step-by-Step Installation:

1. Choose the Mounting Location:

Select a suitable location for mounting the winch on your ATV. The winch is typically mounted to the front of the ATV, often on a specially designed mounting plate. This location allows for easy access and efficient pulling.

2. Prepare the ATV:

Turn off the ATV's engine and disconnect the battery to ensure safety during installation. If you have a front rack or bumper, remove it to access the mounting area.

3. Attach the Mounting Plate:

If your ATV winch kit includes a mounting plate, follow the manufacturer's instructions to attach it to the ATV's frame. Use the provided hardware and ensure a secure fit. Make sure the mounting plate aligns with the holes on the winch itself.

4. Mount the Winch:

Carefully position the winch onto the mounting plate, aligning the holes on the winch with those on the mounting plate. Insert the bolts through the holes and tighten them by hand. Avoid fully tightening the bolts until you've ensured the winch is properly aligned.

5. Check Alignment:

Check that the winch is centered and aligned properly on the mounting plate. Adjust as needed to ensure the winch is straight and parallel to the ATV's frame.

6. Tighten Bolts:

Using the appropriate wrenches or sockets, gradually tighten the bolts on the winch to secure it to the mounting plate. Tighten the bolts in a crisscross pattern to ensure even pressure.

7. Attach Fairlead:

If your winch uses a fairlead (a guide for the winch cable/rope), attach it according to the manufacturer's instructions. The fairlead ensures the cable/rope feeds smoothly onto the winch drum.

8. Wire the Winch:

Follow the wiring instructions provided in the winch kit to connect the winch to your ATV's electrical system. This typically involves connecting power and ground wires to the ATV's battery.

9. Test the Winch:

Before you put everything back together, test the winch to ensure it's functioning properly. Engage and disengage the winch in both directions to confirm smooth operation.

10. Secure Wiring:

Use zip ties or clips to secure the wiring along the ATV's frame and prevent it from dangling or getting caught on obstacles.

11. Reassemble:

Reattach any parts, racks, or bumpers that you removed earlier. Make sure everything is properly secured.

12. Perform Final Checks:

Double-check all connections, bolts, and wiring to ensure everything is secure and properly installed.

13. Reconnect Battery:

Reconnect the ATV's battery and start the engine. Test the winch once more to ensure it's working as intended.

Conclusion:

Mounting a winch on your ATV is a DIY project that can greatly enhance the utility and versatility of your vehicle. By following the manufacturer's instructions and taking your time to ensure proper alignment and secure installation, you can have a reliable winching tool at your disposal for various tasks, from off-road recovery to hauling heavy loads. Always prioritize safety and consult the manufacturer's guidelines for any specific requirements related to your ATV model and winch choice.
